Part of this series of posts: Oracle Database 12c on Oracle Linux 6

Type the following command and press Enter.

yum update

Note:

By default your Linux installation points to the public yum repository so there is no longer any need to update your yum configuration to get the above command to work. If you have support then you should first change your yum configuration to point to the correct repository.
Also, the package update process might have a hold on some files. If you get a message about this, just wait and eventually the hold will be released.

Type y at the Is this ok [y/N]: prompt and press Enter.

Note:

The number of packages may be different when you do your install if there have been more updates since this guide was written. You shouldn’t worry about it.

Type y at the Is this ok [y/N]: prompt and press Enter.

Eventually you’ll see a Complete!

Oracle Database 12c on Oracle Linux 6 – Step 6: Reset the root user password < Previous Post – Next Post > Oracle Database 12c on Oracle Linux 6 – Step 8: Download and Install the Flash Plugin for Firefox

Part of this series of posts: Oracle Database 12c on Oracle Linux 6

Type the following command and press Enter.

passwd

Type root at the New password prompt and press Enter (you’ll get the above error messages). Type root at the Retype new password prompt and press Enter.

Note:
See the note about Joes in the Introduction. Never use root as the root password for a system where security matters.

Oracle Database 12c on Oracle Linux 6 – Step 5: Disable the Firewall, iptables and SELINUX < Previous Post – Next Post > Oracle Database 12c on Oracle Linux 6 – Step 7: Update Oracle Linux with the Latest Software

Part of this series of posts: Oracle 12c on Oracle Linux 6

Click Other….

Enter root as the username and click Log In.

Enter rootroot as the password (or the password you used earlier) and click Log In.

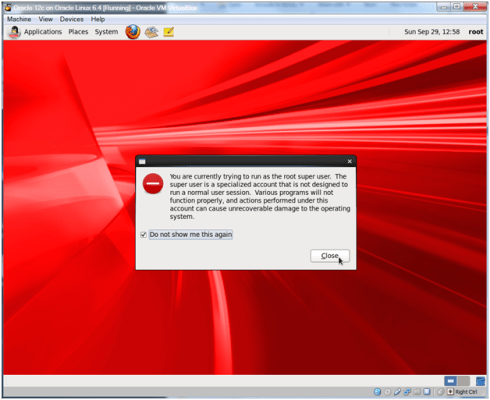

Check Do not show me this again and click Close.

Note:

Or don’t check Do not show me this again if you want to see this warning each time you log in to the X-Windows GUI as root. In general you shouldn’t be logging into the GUI as root. We’re going to do so because it will be easier to use some of the system tools (no pop-ups to log in again as root) to configure our system.

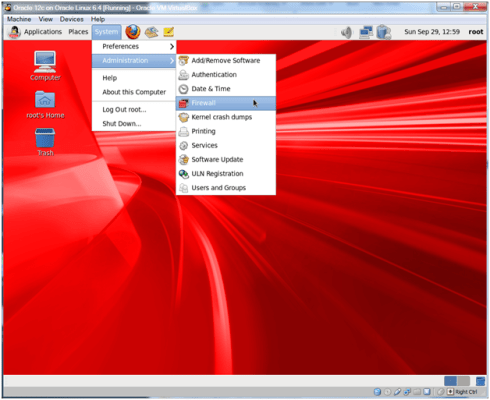

Select System -> Administration -> Firewall from the menu bar.

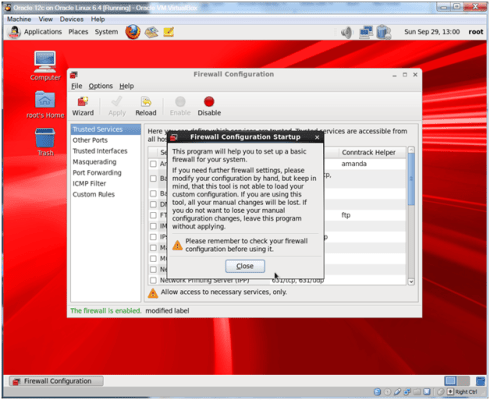

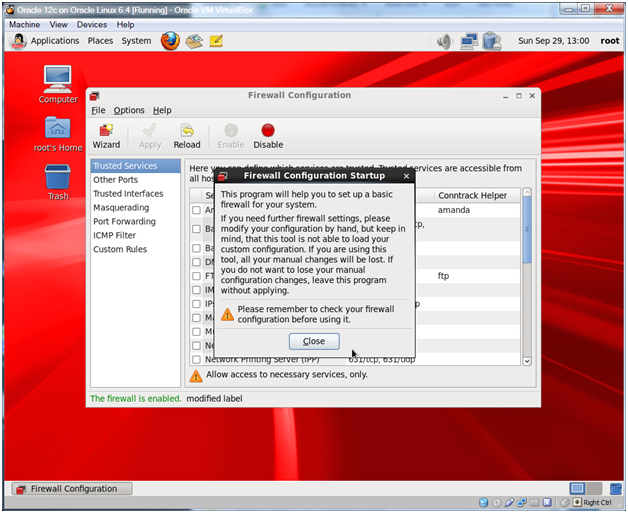

Click Close.

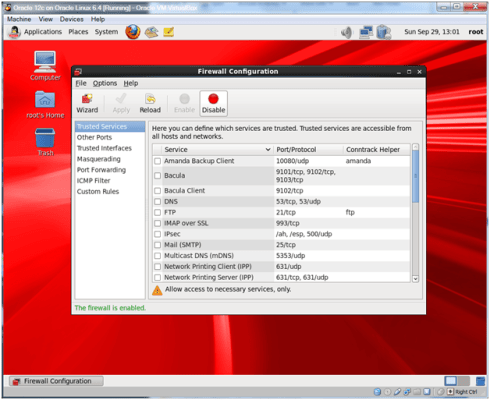

Click Disable.

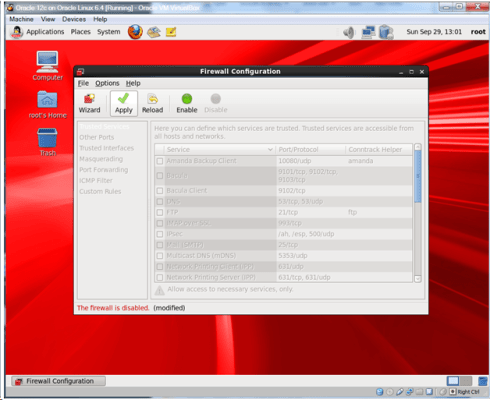

Click Apply.

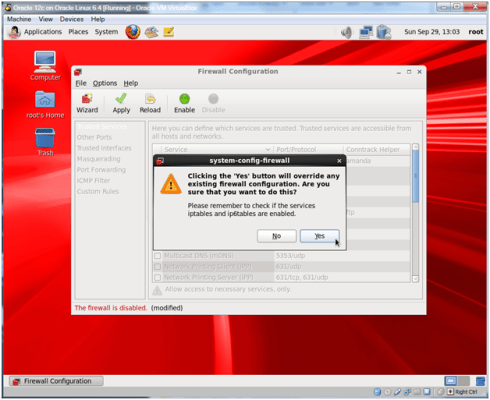

Click Yes.

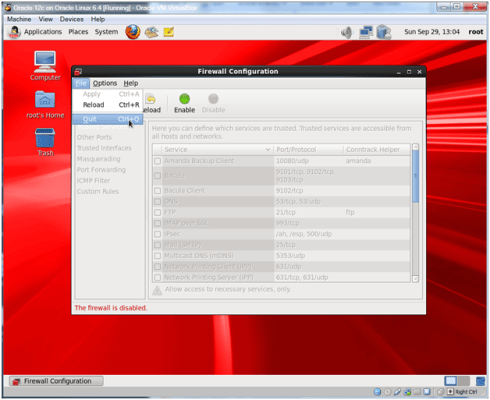

Select File -> Quit to close the Firewall Configuration.

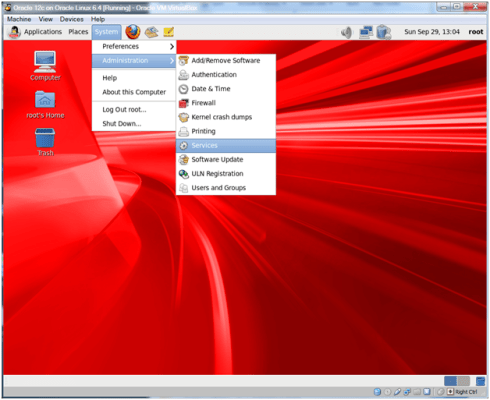

Select System -> Administration -> Services from the menu bar.

Select the ip6tables service and click Disable.

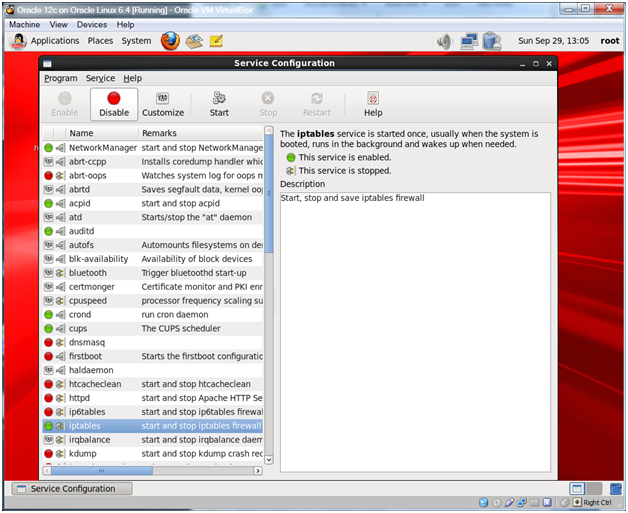

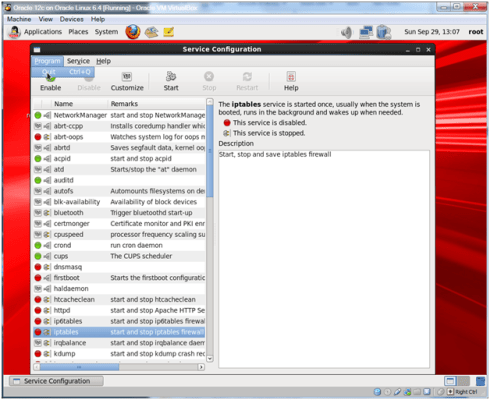

Select the iptables service and click Disable.

Select Program -> Quit to close the Services Configuration.

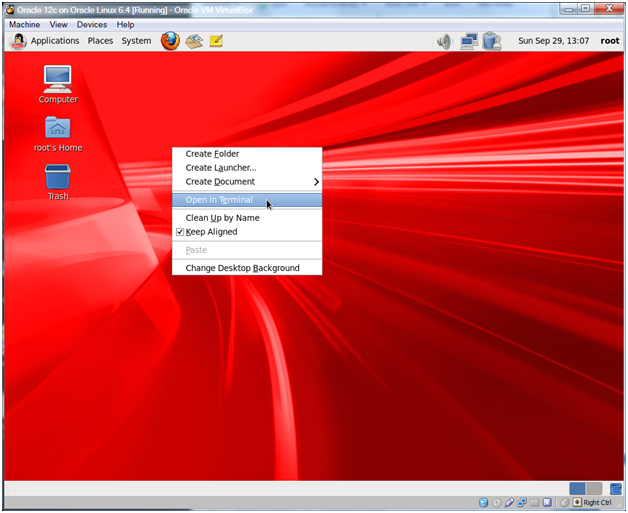

Right-click the desktop and select Open in Terminal to open a terminal window.

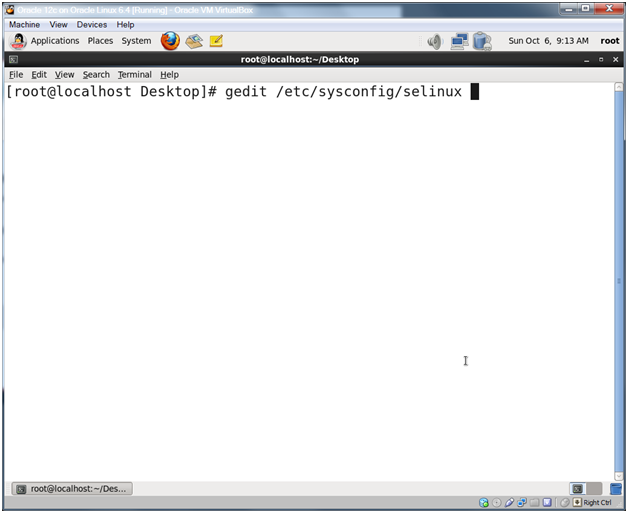

Type the following command and press Enter.

gedit /etc/sysconfig/selinux

Note:

You can use Ctrl-Shift + (the plus key) to change the font size of your terminal windows. I also resize my windows to fill the whole screen. Between major command groupings I’ll also type clear to remove the previous commands from the window and start fresh.

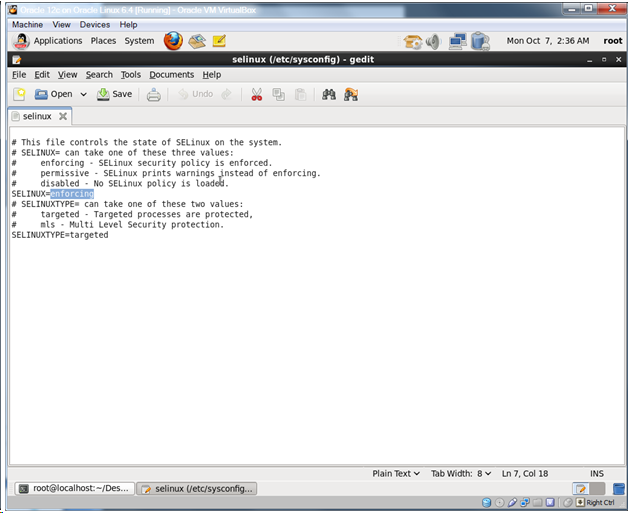

Change SELINUX=enforcing to SELINUX=disabled.

Note:

Why disable SELINUX? According to user 546612 on the Oracle.com forums:

Depending on what pieces of Oracle you are using, there are setuid/setgid issues, there are network interactions, there is fork/exec permission stuff, shared memory, etc. Some stuff in Oracle runs as root, especially if you do RAC. There is a whole whack of IPC.

Note that Redhat recently published a paper that describes how to make SELINUX work with Oracle 11g R2 on Redhat which should work on Oracle Linux too. Since this is a test system, disabling was easier…
http://www.redhat.com/resourcelibrary/reference-architectures/deploying-oracle-11gr2-on-rhel-6

Make sure your SELINUX line reads SELINUX=disabled and Click Save.

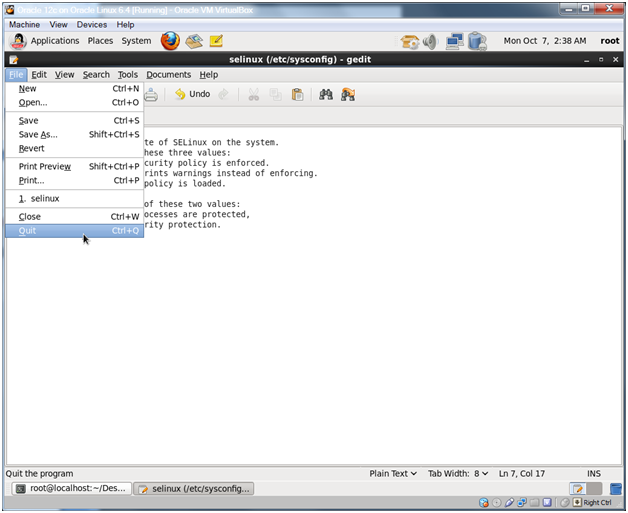

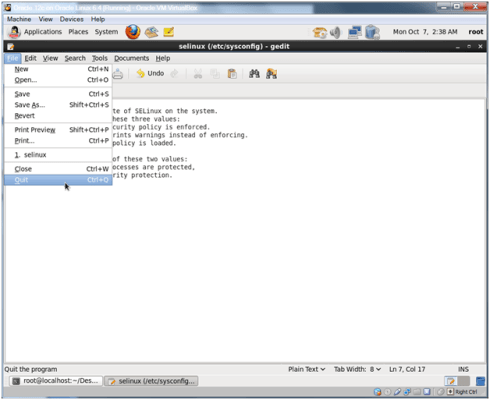

Select File -> Quit from the menu to close gedit.

Oracle Database 12c on Oracle Linux 6 – Step 4: Install Oracle Linux in the Virtual Machine < Previous Post – Next Post > Oracle Database 12c on Oracle Linux 6 – Step 6: Reset the root user password

Part of this series of posts: Oracle Database 12c on Oracle Linux 6

Click Start.

You can click the message and check the Do not show this message again checkbox and then click the little blue x in the top right hand corner. Type Enter to select the Install or upgrade an existing system.

Again, you can click the message and check the Do not show this message again checkbox and then click the little blue x to dismiss the message. Use the Tab key to move the select to Skip and press Enter.

Click Next.

Click Next.

Click Next.

Click Next.

Click Yes, discard any data.

Click Configure Network, select the System eth0 Network Connection and click Edit…

Check the Connect automatically selection and click Apply…

Click Close.

Click Next.

Note:

You could change the name of the machine here if you wish, but the guide assumes that you’ve left the default of localhost.localdomain.

Select a city in your time zone and click Next.

Enter a password for the root user and click Next.

Note:

I use rootroot as the password. We’ll change it to root after we have installed. This generates the below alert.

Click Use Anyway.

Choose Create Custom Layout and click Next.

Select the Free partition under sda and click Create.

Choose Standard Partition and click Create.

Use the check box next to the Drive to deselect all drives.

Change the File System Type to swap, check sda, and set the size to 6144 and click OK.

Note:

I used 6144 because I set my memory size to 6 GB (6144 = 1024 x 6). If your memory size is 4 GB or more you can set this to your memory size. If your memory size is less than 4 GB you can set this to double your memory size.

Select the remaining Free space on sda and click Create.

Choose Standard Partition and click Create.

Use the Mount Point dropdown and choose / as the mount point. Again, deselect all the drives and check sda. Choose Fill to maximum allowable size in the Additional Size Options box. Check the Force to be a primary partition box and click OK.

You should see the above configuration. Click Next.

Click Format.

Click Write changes to disk.

Click Next.

Choose Desktop and click Next.

The install will take a while.

Click Reboot.

Click Forward.

Click Forward.

Choose No, I prefer to register at a later time and click Forward.

Note:

Oracle Linux Network Support for a year is only $119 and can be purchased at shop.oracle.com. This would give you a valid Oracle CSI which would allow you use the Oracle support system which has a ton of resources. If you do get a support license then you can use the Yes, I’d like to register now choice above.

Click No thanks, I’ll connect later.

Click Forward.

Click Forward.

Note:

If you decide to create a non-root user here then you’ll have an additional choice at the login screen for the system. You should not create the oracle user here as we’ll be using a specific package from Oracle to create the oracle user.

Click Yes.

Set your date and time or choose Synchronize date and time over the network and click Forward.

Oracle Database 12c on Oracle Linux 6 – Step 3: Configure an Oracle Linux Virtual Machine < Previous Post – Next Post > Oracle Database 12c on Oracle Linux 6 – Step 5: Disable the Firewall, iptables and SELINUX

This is part of this series of posts: Oracle 12c on Oracle Linux 6

In this step we’ll configure a virtual machine that we will install Oracle Linux on in the next step.

Double click the Oracle VM VirtualBox icon on your desktop.

Click New to create a new VM.

Enter Oracle 12c on Oracle Linux 6.4 as the name, choose Linux for the type and Oracle (64 bit) as the Version.

Note:

Make sure that the Version is Oracle (64 bit) and not just Oracle which ends up getting auto populated for you.

Enter an amount of memory and click Next.

Note:

Use as much memory as you can on your machine. Since I’ve got 8 GB of RAM, I used 6 GB for the virtual machine. If you use less than 4 GB of memory, you’ll get some warnings during the install of Oracle grid which you can ignore. If you only have 4 GB of RAM total on your machine, then use at least 3 GB for the VM.

If you only have 4 GB of RAM on your machine then it might be better to go with 11g R2 instead of 12c. Some folks have had failures when only 4GB was allocated to the virtual machine.

Choose Create a virtual hard drive now and click Create.

Select VDI (VirtualBox Disk Image) and click Next.

Choose Dynamically allocated and click Next.

Note:

This is a test system so we’re going to go with dynamically allocated disks. Fixed size disks are faster, but they will take up much more room. Using all the disk sizes presented in the guide, I ended up with 40.5 GB of used space for the VM by the end of the install.

Change the size to 100 GB and click Create.

Note:

When entering the size in the box (much easier than using the slider) you have to add the GB at the end of your 100 to get 100 GB. If you don’t put the GB you’ll end up with 100 MB which won’t work.

Click the word System in the details pane to bring up the System dialog box.

Remove the Floppy (uncheck) and optionally change the order of the Hard Disk and the CD/DVD-ROM.

Click the Processor Tab and enter the number of processors.

Note:

Ideally you can set this to be as many physical cores as there are on your CPU(s), I chose 4.

Click the Acceleration tab and confirm that the two boxes are checked.

Note:

Remember that your processor has to support these features.

Select the Storage choice on the left hand side of the dialog and then select Empty below the Controller: IDE and then click the disk icon in the Attributes section.

Navigate to your Downloads folder, select the Oracle Linux 6.4.iso file and click Open.

You should see the Oracle Linux 6.4.iso under the Controller: IDE.

Select Controller: SATA in the Storage Tree and click on the Add Hard Disk icon (the one on the right).

Click Create new disk.

Choose VDI (Virtual Disk Image) and click Next.

Choose Dynamically allocated and click Next.

Name the disk ASMDISK01 and change the size to 300 GB.

Note:

300GB is big, but using Oracle 12c Oracle now requires 22 GB to install a container DB with a pluggable DB. 300 GB is also a common size for fast 15K hard drives, so I went with 300 GB. Since these are dynamically allocated disks, they are not going to take up 300 GB each. If you decided to go the fixed disk route, then you’ll need to make these about 12 GB each.

Repeat the previous ASM disk creation steps 12 more times changing the disk names to ASMDISK02 to ASMDISK13.

Note:

We really only need this many disks to follow the Oracle training (for 11g classes). 8 gives us 4 each for the +DATA and +FRA disk groups which would be more than enough.

When finished you should have a storage configuration that looks like the above. Click OK.

Oracle Database 12c on Oracle Linux 6 – Step 2: Download the Oracle Linux 6.4 iso < Previous Post – Next Post > Oracle Database 12c on Oracle Linux 6 – Step 4: Install Oracle Linux in the Virtual Machine

Part of this series of posts: Oracle Database 12c on Oracle Linux 6

In this step we’ll grab Oracle Linux from the eDelivery site. Note that you could see a different (more recent) version and give that a try if you’d like. I used 6.4 and it worked just fine.

Using your browser, go to http://edelivery.oracle.com/linux and click Sign In/Register.

Note:

There are two different Oracle Software Delivery Cloud sites. One is for Oracle Linux and Oracle VM, the other if for everything else Oracle. Make sure to add the /linux to the eDelivery url or you’ll end up in the wrong place.

Enter your Oracle.com Username and Password and click Sign In.

Note:

If you didn’t sign up for an Oracle.com account yet, click the Sign Up button and complete the registration process.

Check both agreement terms and click Continue.

Choose Oracle Linux for Select a Product Pack and x86 64 bit for Platform and click Go.

Click the Oracle Linux Release 6 Update 4 Media Pack for x86_64 (64 bit) link.

Note:

If, by the time you read this, there is a later version of the Oracle Linux media, feel free to give it a try. As long as it’s a higher release than 6.4, it probably should work. If it doesn’t just look for the 6.4 version and use that.

Click the Download button for Oracle Linux Release 6 Update 4 for x86_64 (64 bit).

Chose Save File and click OK.

Using Windows Explorer, open your Downloads folder and find the V37084-01.iso file.

Note:

The name of the file could be different if you’ve used a later version of the file. Adjust accordingly.

Change the file name to Oracle Linux 6.4.iso.

Oracle Database 12c on Oracle Linux 6 – Step 1: Download and Install Oracle VirtualBox and Oracle VirtualBox Extension Pack < Previous Post – Next Post > Oracle Database 12c on Oracle Linux 6 – Step 3: Configure an Oracle Linux Virtual Machine

Part of this series of posts: Oracle Database 12c on Oracle Linux 6

Assumptions

1. You have 64 bit Windows 7 on a 64 bit computer with at least 4 GB of RAM (preferably more) and at least 60 GB of free disk space. Note that it appears that Database 12c is really going to need quite a bit of memory, so 6 GB or more for the virtual machine would be ideal. Database 11g R2 worked with 4 GB.
2. You have a network connection.
3. You have an Oracle.com user account. If you don’t, just go to Oracle.com and click on the register link and follow the registration process.
4. You have a CPU that supports VTx/AMD-v hardware acceleration and you have enabled hardware acceleration in your system bios. If you have not done this yet, google ‘Enabling VTx/AMD-v on a <Your machine type, for example Dell> <Your machine model number> to learn how to boot into your bios, enable the feature and then save and reboot your machine.

Here’s my system description. While it’s a few years old, it’s not a bad system with 8GB of RAM and a 4 core processor with 8 threads.

Oracle Database 12c on Oracle Linux 6 – Introduction < Previous Post – Next Post > Oracle Database 12c on Oracle Linux 6 – Step 1: Download and Install Oracle VirtualBox and Oracle VirtualBox Extension Pack

Part of this series of posts: Oracle Database 12c on Oracle Linux 6

My name is Rich Soule. I work as an Enterprise Solution Architect for RFD & Associates a Principal at C2 Consulting (starting in 2015) helping people architect and build hardware and software solutions to business problems, often with Oracle technology. I also teach the Oracle Database Certified Professional curriculum at Austin Community College. I put together this document to help people build Oracle database test systems and/or classroom/learning environments.

We used to build test systems on actual test computers (and we still do sometimes depending on what you are testing) but virtualization technology makes building test systems a breeze, so it is often leveraged for test systems today. When Oracle acquired Sun they also acquired VirtualBox, a free tool for building virtual machines. We’re going to use Oracle VirtualBox for this installation, but you could just skip the VirtualBox portion and use the guide to build an Oracle Linux desktop system on physical hardware if you wish.

Some notes:

Passwords – After doing demos for many years, I learned that it’s very hard to forget a password for a demo/test system if the password is always the same as the username. Thus the password for root ends up being root and the password for oracle ends up being oracle. In the administrative world we call these accounts ‘Joes’. Joes are highly unsecure and should never be used for any type of production system, nor should they be used for test systems where security matters. If security doesn’t matter, then Joes are perfect. When it comes to creating database passwords, Oracle Database 12c doesn’t let you do that out of the box so we’ll be using (at least initially) oracle_4U as the password for all oracle accounts (although I might advise you to turn them into Joes later).

Test – Yep, this is a document for building a test system and not even a real test system, but instead just a system that you can use to test out various features of Oracle or maybe as a classroom environment. In no way am I suggesting that you use these exact steps to build a production system although you’ll probably want to leverage quite a bit of the knowledge gained in your own systems. Just make sure that you are following best practices, especially as it relates to security.

Windows 7 – This guide was developed on my Windows 7 computer. I’m not sure if this will work on Windows 8 or any other host OS for that matter. It might, it might not. Remember that Microsoft added in a bunch of ‘security’ stuff to Windows so from time to time during the install process you may get User Access Control windows that pop up. I just accept whatever changes are going to be made. Obviously you’ll need administrative privileges on your computer to do this install.

Firefox – I used Firefox 24 during the Windows portion of this install. If you are using a different browser (Chrome, IE, or an older version of Firefox, or even something else), you’ll have to adjust what you’re doing to fit your browser of choice.

Screenshots – Some of them may be just a bit different than what you’ll see. I had already installed VirtualBox and built other VMs. Also I moved some of the screen shots around and took screen shots on different days, so ignore the time changes and background color changes that may pop up from time to time.

Oracle Database 12c on Oracle Linux 6 < Previous Post – Next Post > Oracle Database 12c on Oracle Linux 6 – Assumptions

Rich Soule’s Complete Step-by-Step Guide to building a classroom environment by Installing and Configuring Oracle Database 12c with pluggable databases on Oracle Linux 6 using the Oracle Unbreakable Kernel on Oracle VM Virtualbox with Oracle Restart, Oracle ASM, Oracle SQL Developer, Enterprise Manager Database Express, Oracle Virtualbox Extensions, and rlwrap for Oracle command line tools.

This is round two of this document… I originally started this a few years ago, but this time I’m going to finish posting everything.

This series consists of the following posts:

• Introduction
• Assumptions
• Step 1: Download and Install Oracle VirtualBox and Oracle VirtualBox Guest Additions
• Step 2: Download the Oracle Linux 6.4 iso
• Step 3: Configure an Oracle Linux Virtual Machine
• Step 4: Install Oracle Linux in the Virtual Machine
• Step 5: Disable the Firewall, iptables, and SELINUX
• Step 6: Reset the root User’s Password
• Step 7: Update Oracle Linux with the Latest Software
• Step 8: Download and Install the Flash Plugin for Firefox
• Step 9: Download and Install the Kernel, GCC, and Readline Packages
• Step 10: Download and Install Oracle ASM Support Package
• Step 11: Download and Install Oracle ASMLib
• Step 12: Download and install the Oracle 12c Pre-Install Package
• Step 13: Reset the oracle User’s Password
• Step 14: Download, Configure and Install rlwrap
• Step 15: Format the 13 Linux Disks Using the Linux Disk Utility
• Step 16: Configure ASM and Create the 13 ASM Disks
• Step 17: Create the Directories for Installing Oracle Software
• Step 18: Reboot the System to Run the Latest Patched Kernel
• Step 19: Download and Extract Oracle Database 12c
• Step 20: Download and Extract Oracle Database 12c Grid Infrastructure
• Step 21: Edit the oracle User’s .bash_profile and .bashrc
• Step 22: Install Oracle Grid Infrastructure, Oracle Restart and ASM
• Step 23: Create the FRA Disk Group
• Step 24: Install the Oracle Database Software Only
• Step 25: Create the orcl and pdborcl Databases
• Step 26: Modify glogin.sql
• Step 27: Configure the Pluggable Database to Autostart on Reboot
• Step 28: Log Into Oracle Enterprise Manager Express
• Step 29: Create a Link to SQL Developer and Database Connections
• Step 30: Install the VirtualBox Guest Additions in the VM
• Step 31: Enjoy a Frosty Beverage!
• I Couldn’t Have Done It Without You…
• Helping Others
